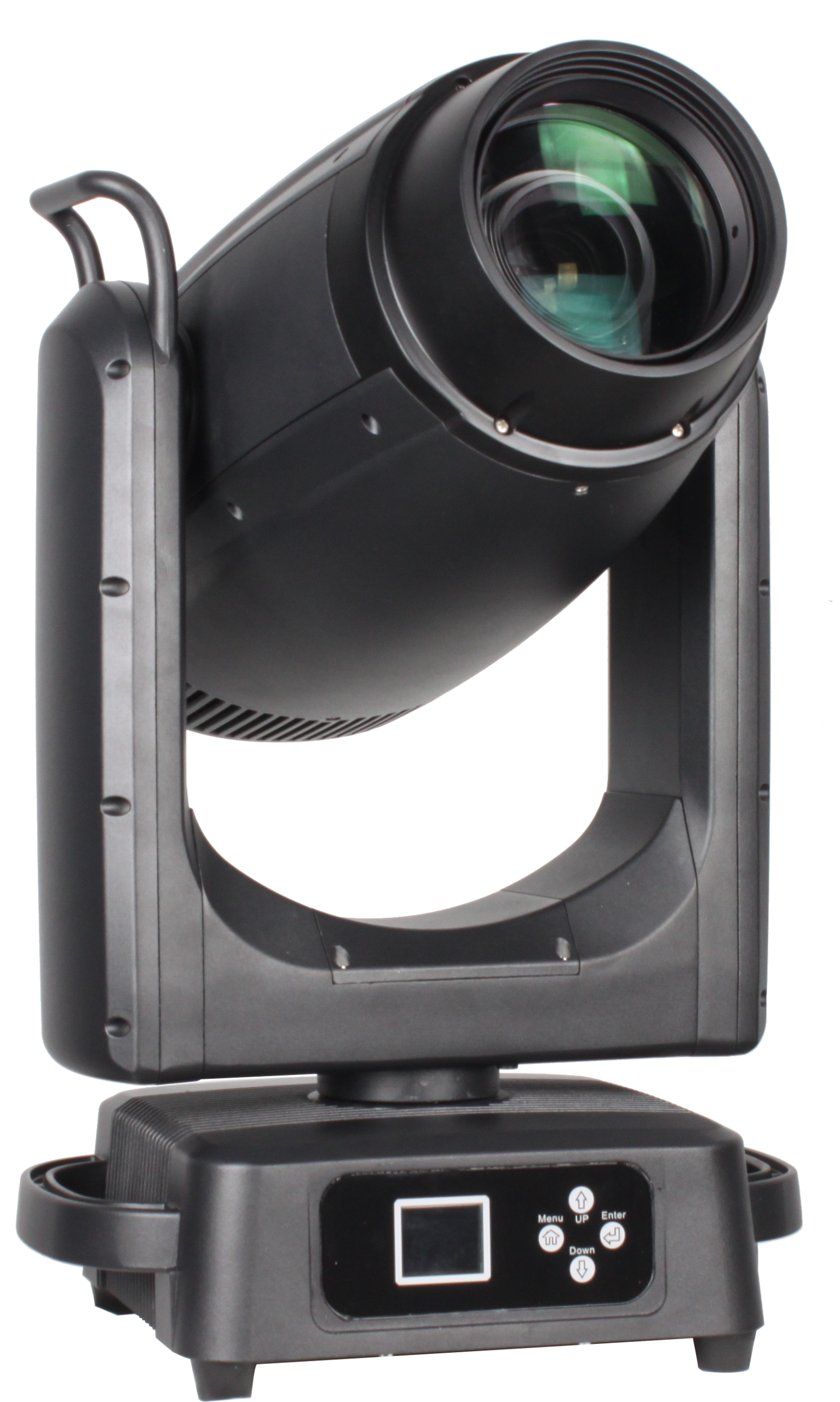

Led IP66 3IN1 HL400Pro
LED IP66 3IN1 HL400Pro is a led light for stage,wedding,exhibition, rental business.
Main Features:
- DMX512 control; Input signal isolation; RDM protocol
- Pan movement: 540°(16bit); Tilt movement: 270°(16bit); Automatic Pan/Tilt position correction
Technical Specifications
| · Optical System | · Light Source: 400W LED,CCT 7500K
· Life expectancy: 50,000H |
| · Pan & Tilt | · Pan movement: 540°(16bit); Tilt movement: 270°(16bit)
· Automatic Pan/Tilt position correction |
| · Control | · DMX512 control; Input signal isolation; RDM protocol |
| · Electric Parameter | · AC90-260V 50/60HZ; Power:480W |
| · Dimension & Weight | · Product size: 472 x 320 x 709mm
· Net weight: 22KG |
| · Software | · Multiple built-in programs
· Upgrade with DMX cable · Channels:22CH/25CH · Remote reset DMX address |

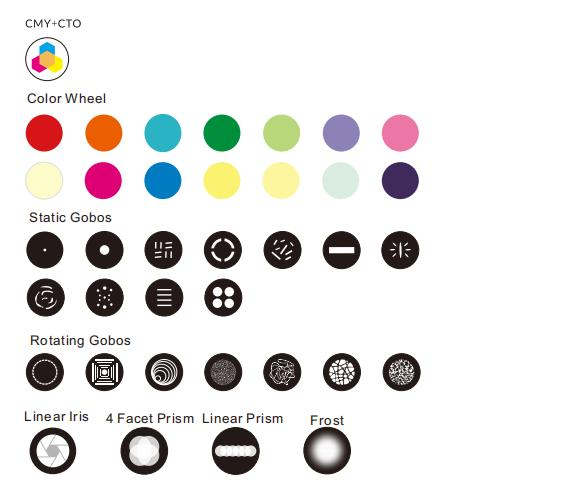

| · Rotating & Static Gobos | · Rotating wheel:7 gobos+open; Static wheel:11 gobos +open;
· Bi-directional rotation with gobo shaking |

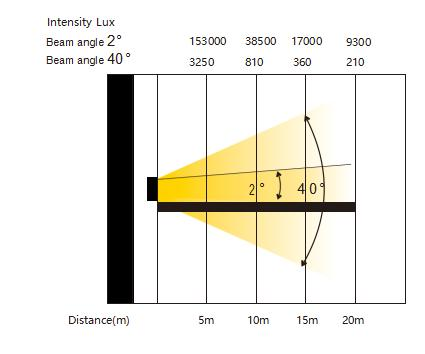

| · Effects | · Beam angle: 2-40°
· Prisms: Four facet+linear prism; Frost: 1 medium frost · Dimming:0-100%linear dimming · Shutter: mechanical with various speed · Strobe:1-25Hz or random |
| · Display | · LCD display; 4 buttons touch panel; Graphical menu display |
| · IP Rating | · IP66 |
| · Color System | · Color wheel: 14colors + open
· CMY color mixing+ linear CTO · Half color and rainbow effect |
Design Details Display
