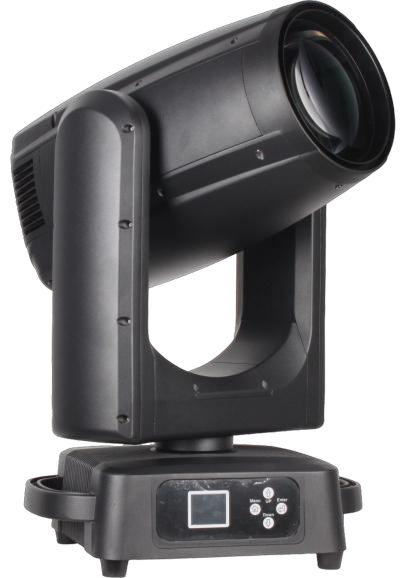

Waterproof Beam HT420B
Waterproof Beam HT420B is a led light for stage,wedding,exhibition, rental business.
Main Features:
- DMX512 control; Input signal isolation; RDM protocol
- Pan movement: 540°(16bit); Tilt movement: 270°(16bit); Automatic Pan/Tilt position correction
Technical Specifications
| · Optical System | · Light Source: USHIO NSL420, CCT 8000K
· Life expectancy: 3,000H |
| · Pan & Tilt | · Pan movement: 540°(16bit); Tilt movement: 270°(16bit)
· Automatic Pan/Tilt position correction |
| · Control | · DMX512 control; Input signal isolation; RDM protocol |
| · Electric Parameter | · AC90-260V 50/60HZ; Power: 600W |

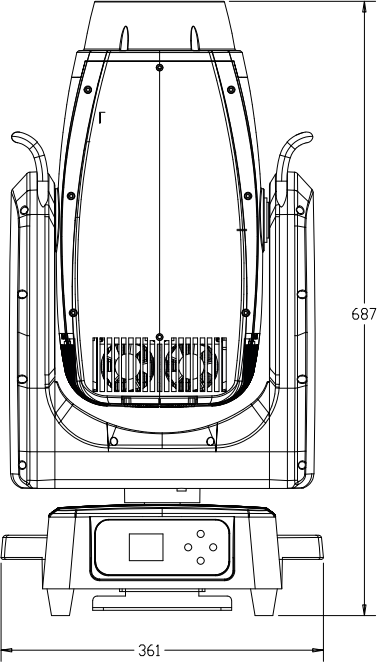

| · Dimension & Weight | · Product size: 472 x 319 x 794mm
· Net weight: 35KG |
| · Software | · Multiple built-in programs
· Upgrade with DMX · Channels:14CH · Remote reset DMX address and fixture by DMX |

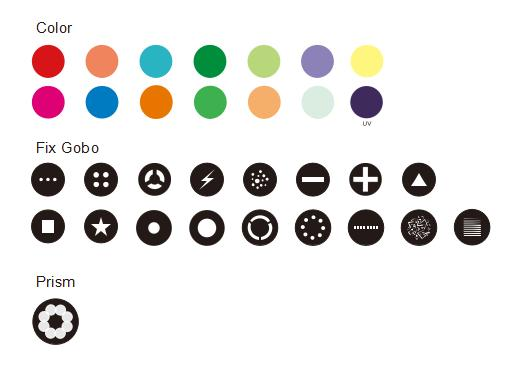

| · Static Gobos | · Static wheel:17 gobos
· Bi-directional rotation with gobo shaking |

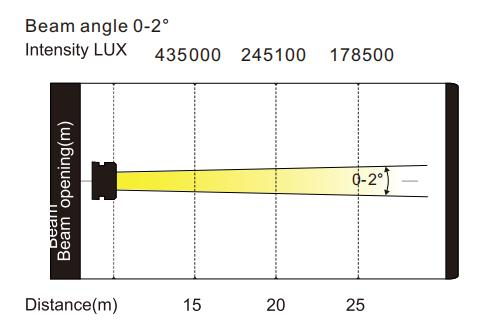

| · Effects | · Beam angle: 0-2°
· Prisms: eight facet prism · Dimming:0-100%linear dimming · Shutter: mechanical with various speed · Strobe:1-25Hz or random |
| · Display | · LCD display; 4 buttons touch panel |
| · Color System | · 1Color wheel: 14colors + open
· Half color and rainbow effect |
| · IP Rating | · IP66 |

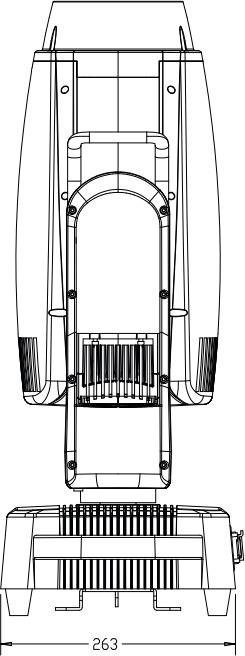

Design Details Display
