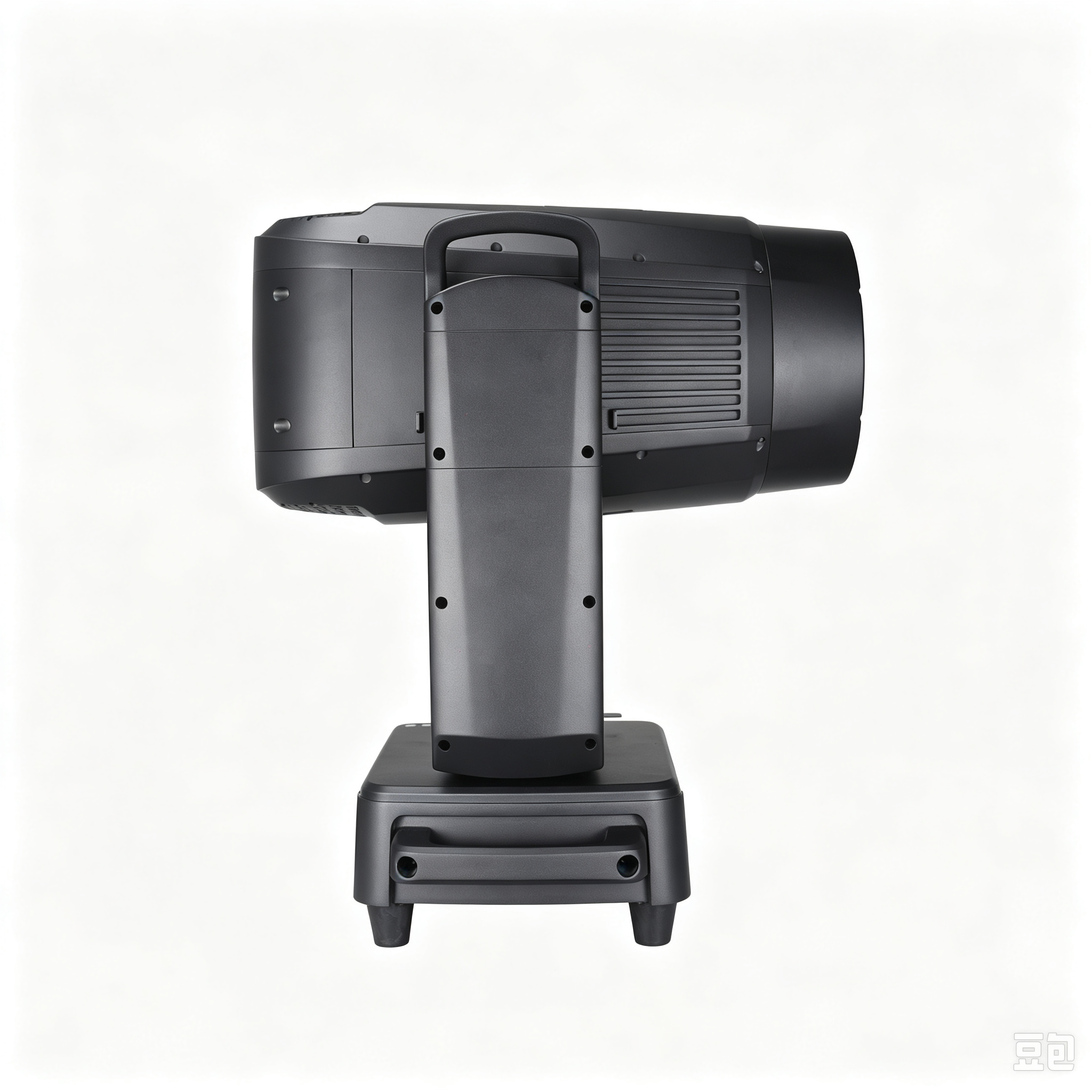

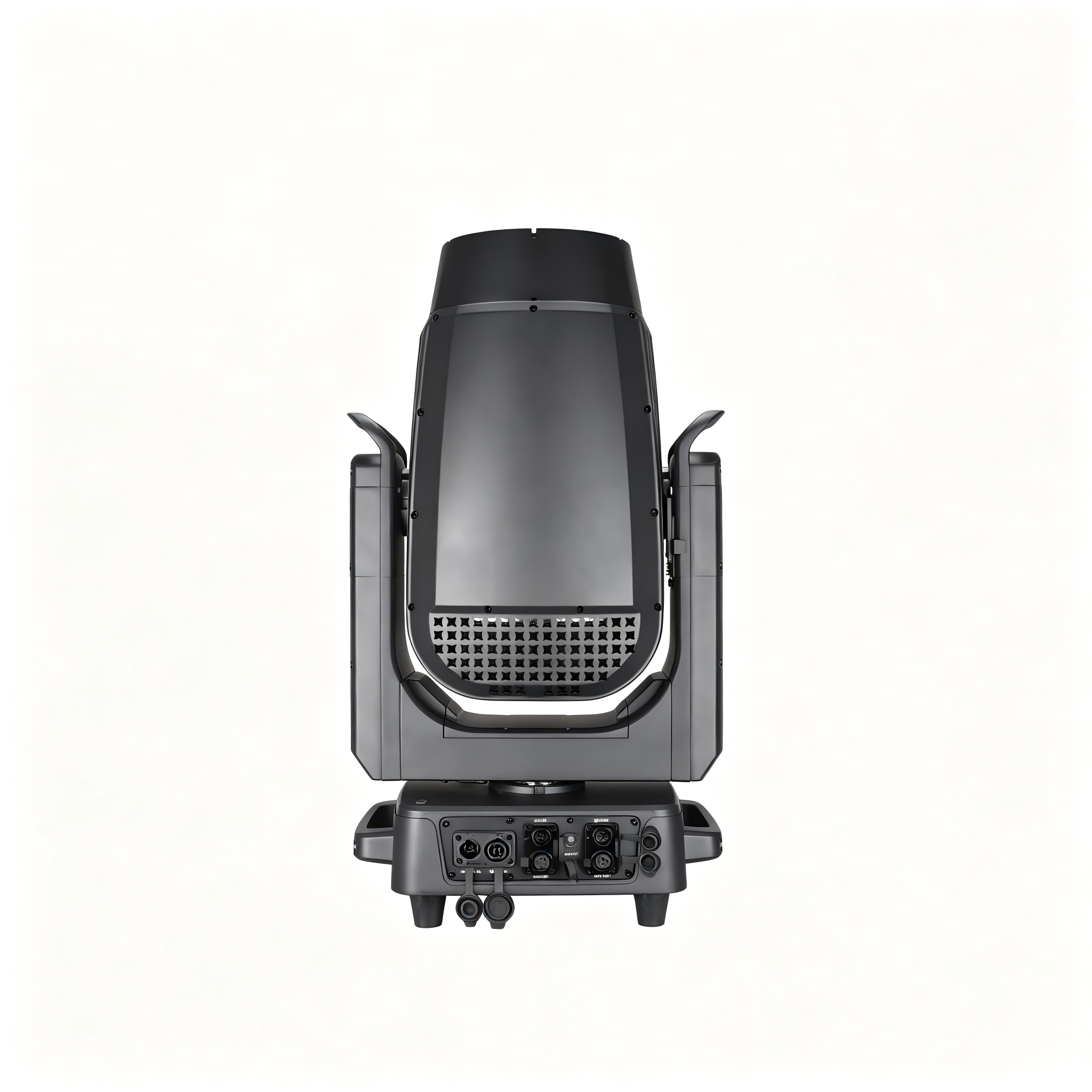

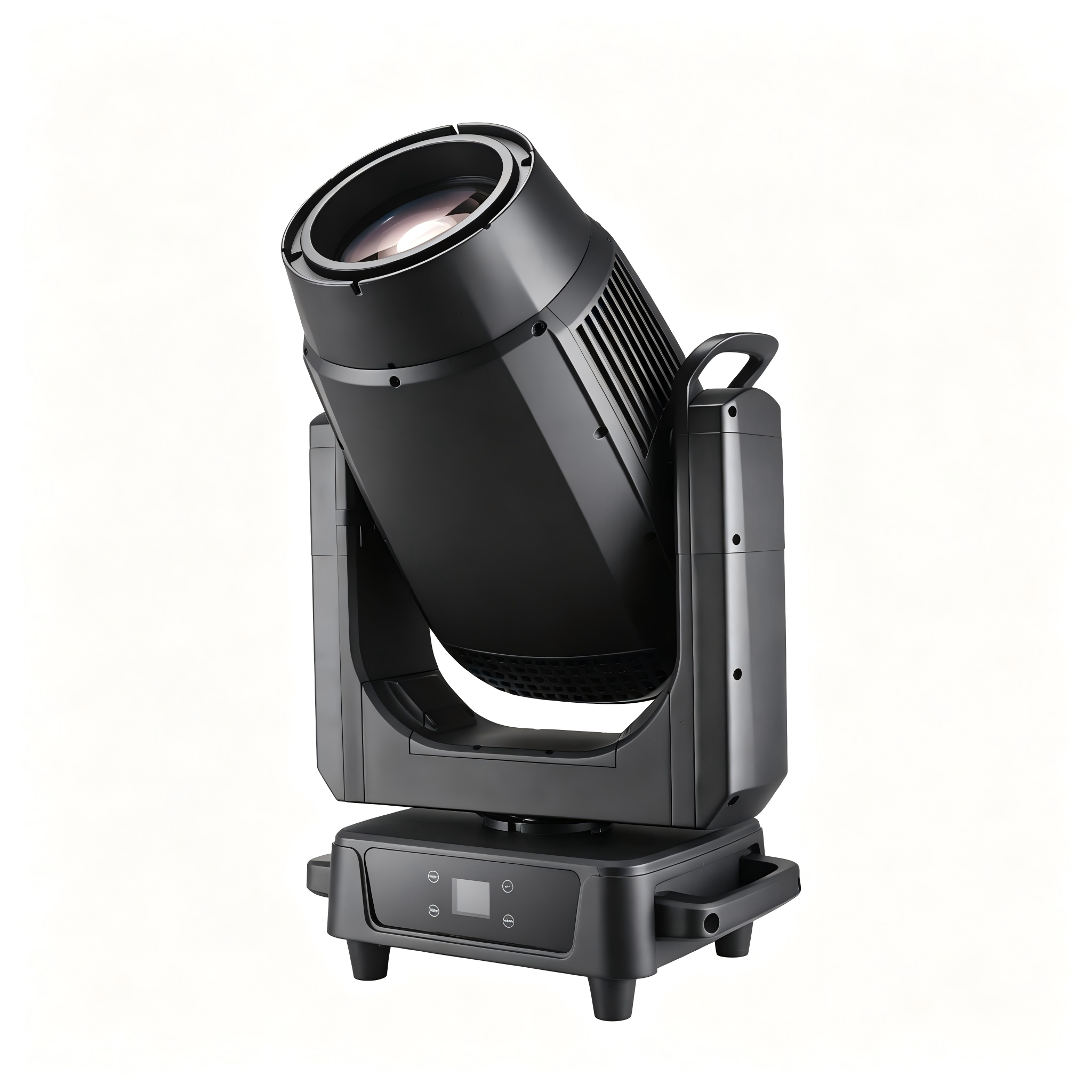

600W BEAM SPOT WAS FRAMING 4 IN 1 PROFILE STAGE LIGHT
The BSWF600 is a high performance 4 in 1 hybrid moving head light, combining beam, spot, wash and framing effects within one compact fixture. Equipped with a robust 600W LED light source, this professional moving head light features sharp beam projection, smooth color mixing and outstanding luminous output. Well suited for stage events, live touring shows, TV broadcast studios and large scale live productions, it is a reliable all in one stage moving head lighting solution for professional lighting operators.
The BSWF600 is a highperformance 4in1 hybrid moving head light, combining beam, spot, wash and framing effects within one compact fixture. Equipped with a robust 600W LED light source, this professional moving head light features sharp beam projection, smooth color mixing and outstanding luminous output. Wellsuited for stage events, live touring shows, TV broadcast studios and largescale live productions, it is a reliable allinone stage moving head lighting solution for professional lighting operators.
- Optical system
- Light source : 600W LED module
- Rated lifespan: 20000 hours
- Zoom range: 3.5°-50°linear high-speed zoom
- Illuminance: 190000LUX@5M
- Lumen: 12938
- CRI: with adjustable rendering mode, standard mode Ra>70, high rendering mode>90
- Color mixing system: independent CMY color mixing system
- Color temperature adjustment: CTO color temperature correction (7200-3200K)
- Light source color temperature: 6400K
- Color system: Curtain style CMY+CTO, one color wheel 7 colors+1 white
- Static gobo wheel: 9 gobos+white, adjustable shaking speed
- Rotating gobo wheel: 7pluggable glass gobos, each gobo can independently rotate forward and backward
- Effect wheel: Dazzling simulation of dynamic flames, flowing water and other dynamic effects
- Prism: 2 prisms rotating in both directions at variable speed
- Pan movement 540°, Tilt movement 270 °, automatic return and 16 bit precision fine adjustment
- Framing shutters system: 4 independent blades, each blade can be individually closed and rotated ± 60 °
- Dimming system: 0-100% linear adjustment
- Strobe system: 0-25Hz fast electronic strobe
- Atomization system: 1 independent atomization plate, 0-100% linear atomization, natural and soft light spot
- Electrical Control
- Input voltage: AC100V-240V 50/60Hz
- DMX channel: 42/43/49/50/51CH
- Control Protocol: Standard DMX512 protocol, with RDM function, can performsoftware online upgrade
- Menu display: switchable between Chinese and English
- Signal interface: 3pin XLR signal input/output, optional 5pin
- Display mode: LCD touch screen display, reversible 180 ° display
- Energy saving sleep mode: automatically enters sleep mode when the signal is disconnected, safe and energy-saving
- Software upgrade: Software can be upgraded through the DMX signal cable
- Cooling system: efficient cooling system, intelligent speed regulating fan, built-in temperature sensor, automatic adjustment cooling system
- Installation
- Net weight: 30KG
- Product size: 393*266*683mm
- Housing: Magnesium aluminum alloy, integrated clamp
- IP grade: IP66
Powerful moving‑head BSWF 4 in 1 zoom spot wash profile moving head stage light delivers crisp dynamic beams. Fast movement, stable performance, perfect for live shows, clubs, church and large‑scale events.
